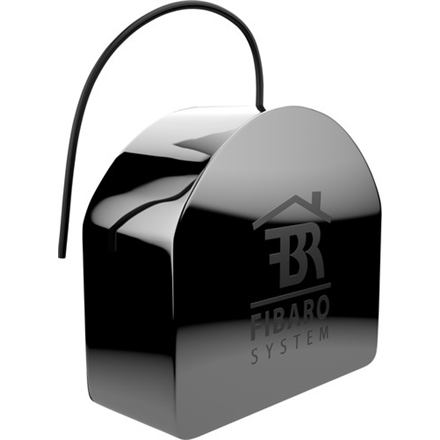

Fibaro Double Smart Module, Z-Wave Plus EU
Fibaro Double Smart Module, Z-Wave Plus EU
Waga netto: 0.02 kg
Funkcje techniczne: Power supply: 100-240V; Smart Module (FGS-214): 6.5A, Double Smart Module (FGS-224): 6A per one channel, 9.5A total; Compatible with resistive or incandescent load; Active element: micro-gap relay μ; Maximum length of wires: 3 m; Recommended 0.2–2.0 mm2 wire cross-section area; 0–35°C operating temperature; Ambient humidity: 0–95%; Radio protocol: Z-Wave (500 series chip); Radio frequency band: 868.0–868.6 MHz; 869.7–870.0 MHz; Max. transmitting power: +5dBm; Range: up to 50 m outdoors, up to 40m indoors; Dimensions (Height x Width x Depth): 42.5 x 38.25 x 20.3 mm; Automatic electrical control for use in equipment for household or similar use; Mode of operation: Type 1.B Action; Pollution degree: 2; A Software class; Compliance with EU directives: 2011/65/EU, 2015/863, 2014/53/EU
Inne funkcje: The remotely operated FIBARO Smart Module and Double Smart Module are designed to turn electrical devices or circuits on and off; Smart Module (FGS-214) allows to control one device or circuit and the Double Smart Module (FGS-224) allows to control two devices or circuits; The compact size of the device allows for the product to be installed in the housings of other devices. The devices can be controlled either via the Z-Wave network or with buttons connected directly to them
Funkcje regulowane: Works with various types of switches and buttons; Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption; Works as a Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network); May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers
Producer product family: Double Smart Module, Z-Wave Plus EU
Model: brak danych
Obsługiwane protokoły sieciowe: brak danych
Gwarancja: 24 miesiące
Strona producenta: https://manuals.fibaro.com/smart-module/
Marka
Kod producenta
5902701702090
